The EDITSTATECHANGED event

One of the requirements we needed when developing the new IDE was the ability to detect when the state of a control changed in such a fashion that might affect the operations that could be performed on it.

A classic example of this is highlighting text in an edit control so that it can be cut or copied, or perhaps replaced with a paste operation: At this point an item like a Cut or a Paste button might need enabling so the UI is in sync with the state of the control.

To enable this functionality several controls now support a new event called EDITSTATECHANGED, which is fired when the “edit state” is changed.  The edit state is defined as one of the following operations:

  • Undo
  • Redo
  • Cut
  • Copy
  • Paste
  • Select All

So, if a user takes an action in the control that enables or disables one of these options you can respond to it via the EDITSTATECHANGED event.

The EDITSTATECHANGED event passes a single parameter called “NewEditState“, which is a dynamic array of Boolean flags with the following structure:

<1> CanUndo      : TRUE$ if the control allows an UNDO operation
<2> CanRedo      : TRUE$ if the control allows a REDO operation
<3> CanCut       : TRUE$ if the control allows a CUT operation
<4> CanCopy      : TRUE$ if the control allows a COPY operation
<5> CanPaste     : TRUE$ if the control allows a PASTE operation
<6> CanSelectAll : TRUE$ if the control allows a SELECTALL
                 : operation

(You may notice that these flags closely follow the items in a standard “Edit” menu).

Here’s a simple example to set the state of some Cut/Copy/Paste buttons:

   objxArray =        @window : ".BTN_CUT"
   propArray =        "ENABLED"
   dataArray =        newEditState<3>

   objxArray := @rm : @window : ".BTN_COPY"
   propArray := @rm : "ENABLED"
   dataArray := @rm : newEditState<4>

   objxArray := @rm : @window : ".BTN_PASTE"
   propArray := @rm : "ENABLED"
   dataArray := @rm : newEditState<5>

   call Set_Property_Only( objxArray, propArray, dataArray )

The following controls support the EDITSTATECHANGED event:

  • COMBOBOX
  • EDITLINE
  • EDITBOX
  • EDITTABLE
  • LISTBOX
  • PROPERTYGRID

(Disclaimer: This article is based on preliminary information and may be subject to change in the final release version of OpenInsight 10).



Listboxes and ToolTips

Following on from our previous post on the new TOOLTIP property, this time we’re going to look at the new tooltip functionality added to Listbox controls, namely tracking and in-place item tooltips.

Tracking tooltips are small popup windows that appear when a user hovers over a partially obscured item in the control: they display the full item text string instead, and thereby avoid the need for horizontal scrolling, which is always a preferable user experience.

listbox_tracking_tooltips

Offset tracking tooltip

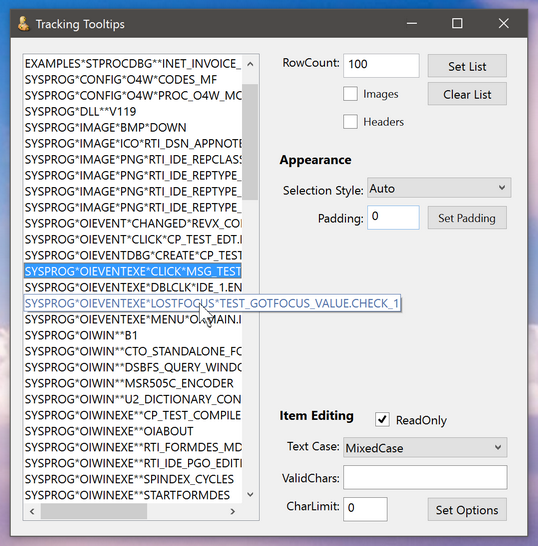

In-place tooltips operate in a similar manner, but rather than appearing at an offset to the cursor position they actually appear over the item itself, hence the term “in-place”:

listbox_inplace_tooltips

In-place tracking tooltip

This behaviour is controlled by the new SHOWITEMTOOLTIPS property which can be set to one of the following values:

  "0" - Disabled : Item tooltips are not displayed
  "1" - Offset   : Item tooltips are displayed at an offset to the cursor
  "2" - In-place : Item tooltips are displayed over the item itself.

When set to “1” (Offset) or “2” (In-place) the SHOWITEMTOOLTIPS property overrides the normal TOOLTIP property, so a “normal” tooltip will not be displayed.

Displaying alternative item text

Sometimes it is desirable to display a different text string in the tooltip rather than the item text itself.  In this case you can set the new SHOWVALUESASTOOLTIPS property to specify that the tooltip should display the contents of the item’s VALUE property instead.

SHOWVALUESASTOOLTIPS is a simple boolean property of TRUE$ or FALSE$.

listbox_tracking_value_tooltips

Displaying the Value property as a tooltip

Note in this case the tooltip is always displayed at an offset, and is triggered regardess of whether or not the item is clipped.



Combobox and TreeListbox controls

Both new properties described here also apply to simple Combobox and TreeListbox controls.

(Disclaimer: This article is based on preliminary information and may be subject to change in the final release version of OpenInsight 10).



The VALUES and VALUE properties

When working with ListBox and ComboBox controls it can sometimes be a chore to derive an “internal” value from list of visible items.  In many cases this involves creating an associated array of internal values, storing them in the MISC property (or a custom “@” property), and then extracting this array and the SELPOS property at runtime to arrive at the required data.

For example:

// Set up a LIST and internal items
colorNames = "Red"    : @fm : "Green"  : @fm : "Blue"
colorVals  = 0x0000FF : @fm : 0x00FF00 : @fm : 0xFF0000

call set_Property_Only( @window : ".LIST_1", "LIST", colorNames )
call set_Property_Only( @window : ".LIST_1", "MISC", colorVals )

...

// Then at runtime to access the currently selected internal value
colorVals = get_Property( @window : ".LIST_1", "MISC" )
selPos    = get_Property( @window : ".LIST_1", "SELPOS" )

colorVal  = colorVals<selPos>

...

// Or even more long-winded, find an internal value from the external one:
colorNames = get_Property( @window : ".LIST_1", "LIST" )
colorVals  = get_Property( @window : ".LIST_1", "MISC" )

locate "Green" in colorNames using @fm setting pos then
   greenVal = colorVals<pos>
end

...

// or perhaps setting the currently selected item from an internal code:
colorNames = get_Property( @window : ".LIST_1", "LIST" )
colorVals  = get_Property( @window : ".LIST_1", "MISC" )

locate 0x00FF00 in colorVals using @fm setting pos then
   greenName = colorNames<pos>
   call set_Property_Only( @window : ".LIST_1", "TEXT", greenName )
end

To make this style of coding somewhat cleaner, OpenInsight 10 introduces the new VALUES property, which allows you to set an “internal” value for each item in the control, along with property indexing support.  There is also a new VALUE property, which is the counterpart to the standard TEXT property, and provides access to the currently selected item via it’s internal value.

Here’s the above examples rewritten to use VALUES and VALUE instead:

// Set up a LIST and internal items
colorNames = "Red"    : @fm : "Green"  : @fm : "Blue"
colorVals  = 0x0000FF : @fm : 0x00FF00 : @fm : 0xFF0000

call set_Property_Only( @window : ".LIST_1", "LIST", colorNames )
call set_Property_Only( @window : ".LIST_1", "VALUES", colorVals )

...

// Then at runtime to access the currently selected internal value
colorVal = get_Property( @window : ".LIST_1", "VALUE" )
...

// Find an internal value from the external one:
greenVal = get_Property( @window : ".LIST_1", "VALUES", "Green" )

// or by position
greenVal = get_Property( @window : ".LIST_1", "VALUES", 2 )

...

// or perhaps setting the currently selected item from an internal code:
call set_Property_Only( @window : ".LIST_1", "VALUE", 0x00FF00 )

VALUES and VALUE apply to both ListBox and ComboBox controls.

(Disclaimer: This article is based on preliminary information and may be subject to change in the final release version of OpenInsight 10).
