Menu Designer update in v10.0.8

Version 10.0.8 has seen each of the Menu Designer tools (Form and Context) get a substantial overhaul, both to fix some bugs and also to improve their usability.  This post will provide a quick overview of what has changed.

The Context Menu Designer

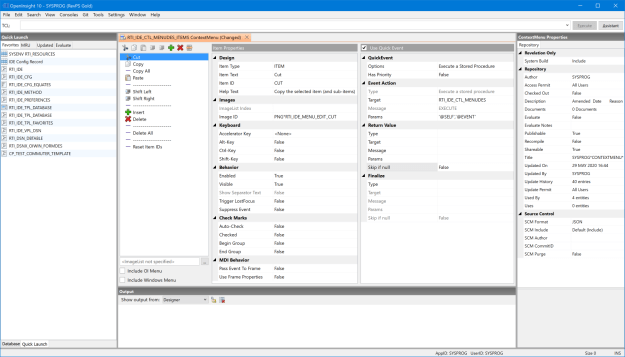

ContextMenu Designer

Context Menu Designer

  • The “Item Properties” have been moved from the IDE Property Panel onto the designer itself, adjacent to the menu structure outline.  The previous layout needed far too much mouse movement between the items and their properties.
  • The ability to specify an image list for the menu has been added (this has always been supported at runtime but was not exposed via the Menu Design tools).
  • Re-added the “OI Menu” and “Windows Menu” options.
    • These are no longer global like they were in version 9.x, rather they are specific to the menu in question.
  • Added back the leading “-” symbol for items that don’t have an image as per version 9.
  • Added back the missing “F11” and “F12” Accelerator Key options
  • Improvements to the validation of item properties, e.g:
    • Better generation of default Item IDs.
    • Better checks for duplicate IDs.
    • Prevent events for POPUP item types.
    • A warning message when indenting/un-indenting items will change the parent item type (for example, indenting an item could cause the preceding ITEM to become a POPUP which would remove any existing event code from it).
  • Added “Shift-key” functionality to the buttons to control “insert before/after” operations (normal operation is “insert before”, pressing Shift changes them “insert after”), i.e:
    • Shift + Insert button for “insert after current item”.
    • Shift + Insert Separator button for “insert separator after current item”.
    • Shift + Paste button for “paste after current item”.
  • Added a full keyboard interface for the menu item structure list-box:
    • F2 (or Double-Click) to edit Item text in place.
    • Enter to insert a new item after the current item and move automatically into  “edit mode” (as per “F2” above).
      • Down arrow on the last item will insert a new item as per above.
      • Esc on a new “untouched” item will delete it.
    • Left key to shift an item and any sub-items to the left (un-indent).
    • Right key to shift an item and any sub-items to the right (indent).
    • Del key to delete items and their child items.
    • Ctrl-C to copy an item and it’s sub-items to the Windows Clipboard.
    • Ctrl-X to cut an item and it’s sub-items to the Windows Clipboard.
    • Ctrl-P to Paste items from the Windows Clipboard into the menu structure.
  • Added a context menu to the menu item structure listbox that duplicates the buttons, and adds the following operations:
    • Reset All Item IDs – processes the entire menu and changes all item IDs to their defaults based on their text and the name of their parent item.
    • Copy All – Copies all items to the Windows Clipboard – useful for duplicating menus from one form to another.
    • Delete All – Removes all items from the menu.
  • You are not asked to save the details for each item as you select items in the designer, but you will be prevented from moving to a different item if there is a validation failure.

The Form Menu Designer

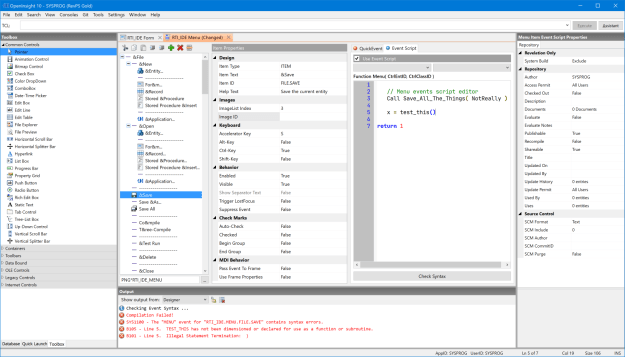

Form Menu Designer

Form Menu Designer

Likewise the Form Menu designer has received the same treatment with a few additional extras:

  • A tab has been added for maintaining Event Scripts.
  • The events tab has colored indicators (orange and blue) to denote if an item has a QuickEvent or an Event Script.
  • More validation:
    • Prevent Separators being top-level items.
    • Prevent events for top-level items (unfortunately they are not supported by the Presentation Server in this version).
  • Syntax checking.
    • Syntax is automatically checked if you attempt to select another item – you will be prevented from moving to a different item if the check fails.

You should be able to catch these improvements in the next release, so please try them out and let us know how they work for you!

What’s “this”?

As I’m sure many of you will know, when you’re working with object oriented languages like C++, JavaScript and VB , the compiler provides you with a keyword (e.g. ‘this’ or ‘Me’) that you can use as a reference to the specific instance of an object under which the code is currently executing.  This provides a neat and easy way to access details about the current context when responding to events and methods, and generally improves the clarity of the code.

However, a ‘this/Me’ construct is not something we’ve really had in OpenInsight, because when we write our event handling code the system explicitly passes the name of the current object as the first argument called “CtrlEntID”, so in our event scripts we can use that instead.  Obviously this works well enough, but over the years I’ve found some situations where it would be nice to go a little further:

  • In many of the OpenInsight training courses I’ve run, one of the most common questions I get asked from new students is: “what is the equivalent of ‘this’, or “where is the ‘Me’ keyword”?   Having some sort of “this/me” construct in Basic+ would make learning the system much easier for them, and the name “CtrlEntID” hardly seems slick!
  • With the trend away from using event scripts and moving code into commuter modules the name “CtrlEntID” is no longer enforced – it can be named anything the author of the commuter module wishes, leading to a possible loss of clarity (for example in my own commuter modules I always use the variable name “Object” in place of “CtrlEntID”, but that’s just my convention, and is something subsequent code maintainers must adopt).
  • As code becomes deeper and more nested passing the “CtrlEntID” variable to each subsequent procedure as an argument becomes more of a chore, and I’ve seen global variables used in place of this which can lead to code that is difficult to maintain.

Of course, we do have the “@Window” system variable, which contains the name of the parent WINDOW instance for the currently executing context, so we’re nearly there, but unfortunately that’s not the same as ‘this/Me’ unless you’re responding to a WINDOW event.

So, with the release of version 10.0.8 we’ve now gone the whole way and added a new system variable called:

@Self

When an event is triggered this variable contains the full name of the control instance under which the event code is executing, just like @Window contains the name of the parent WINDOW instance.

E.g:

// Using CtrlEntID
Name = Get_Property( CtrlEntID, "TEXT" )

// Using @Self
Name = Get_Property( @Self, "TEXT" )

We’ve also included two more system variable names as synonyms for @Self as well:

@This
@Me

You may use these in place of @Self if you’re more inclined to use names that are familiar from another language (@Self was chosen because it is already referenced in OpenInsight as a pseudo-variable name when defining QuickEvents).

Hopefully, moving forward, this small addition may help to maintain a cleaner code-base and make teaching new students a little easier.
